DMXMD-40N

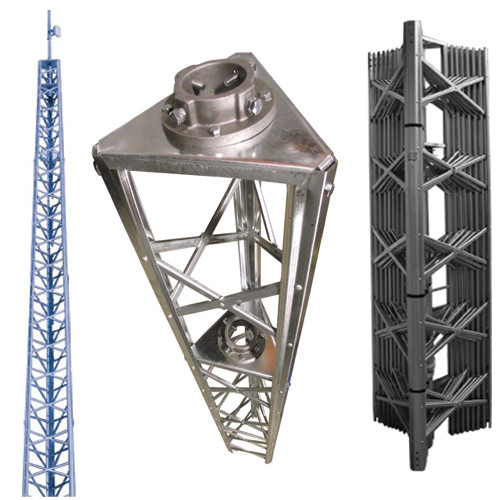

Model DMXMD-32N 32 foot DMX medium duty tower. Packaged complete with CBS-05 concrete base stubs, top plate, rotor plate, (2) model 244A cast aluminum mast clamps and all necessary hardware. Mast not included.

FEATURES:

• Attractive tapered design.
• “X” brace with beaded channel leg
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure
• High strength galvanized steel construction
• Eight foot sections
• Section 5 is 12 gauge, 2 to 4 are 16 gauge galvanized steel
• Compact shipping package
• Free standing installation
• Ideal for amateur radio and industrial/commercial communications applications
• Climb shields recommended

• Tower Height: 32'
• Wind Load: 6 sq.ft.

Skidded Dimensions: 101" L x 26" W x 23" H / Cubic Feet: 17.47 / Weight: 221 lbs

Unskidded Dimensions: 96" L x 21" W x 21" H / Cubic Feet: 12.25 / Weight: 171 lbs
