DMXHD-40N

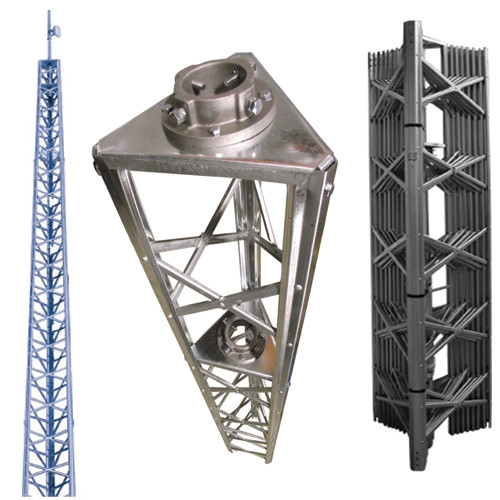

Model DMXHD-40N 40 foot DMX heavy duty tower. Packaged complete with CBS-07 concrete base stubs, top plate, rotor plate, 2 model 244A cast aluminum mast clamps and all necessary hardware. Mast not included.

FEATURES:

• Attractive tapered design.
• “X” brace with beaded channel leg
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure
• High strength galvanized steel construction
• Eight foot sections
• Sections 5 to 7 are 12 gauge, 3 & 4 are 16 gauge galvanized steel
• Compact shipping package
• Free standing installation
• Ideal for amateur radio and industrial/commercial communications applications
• Climb shields recommended

• Tower Height: 40' (12.2m)
• Wind Load: 9 sq.ft.

Skidded Dimensions: 101" L x 32" W x 29" H / Cubic Feet: 27.1 / Weight: 336 lbs

Unskidded Dimensions: 96" L x 27" W x 27" H / Cubic Feet: 20.25 / Weight: 276 lbs
