DMXHD-32N Heavy Duty

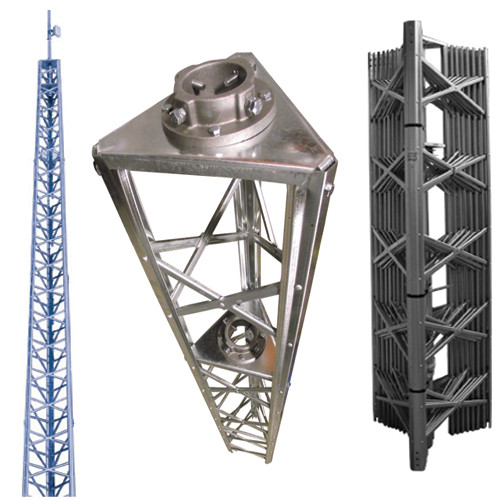

Wade's DMXHD-32N 32' DMX Heavy Duty Tower is packaged complete with CBS-06 concrete base stubs, top plate, rotor plates, (2) model 244A cast aluminum mast clamps and all necessary hardware. Mast not included.

Features:

• Attractive tapered design.
• "X" brace with beaded channel leg.
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure.
• High strength galvanized steel construction.
• Eight foot sections.
• Sections 5 & 6 are 12 gauge, 3 & 4 are 16 gauge galvanized steel
• Compact shipping package.
• Free standing installation.
• Ideal for amateur radio and industrial/commercial communications applications.
• Climb shields recommended.

• Tower Height: 32' (9.75m)
• Wind Load: 9 sq.ft. (0.84 m2)

Skidded Dimensions: 101" L x 29" W x 29" H / Cubic Feet: 24.5 / Weight: 230 lbs

Unskidded Dimensions: 96" L x 24" W x 24" H / Cubic Feet: 16 / Weight: 180 lbs
