DMXMD-56N

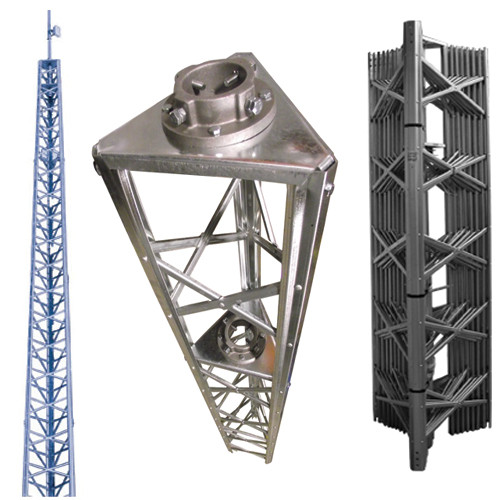

Model DMXMD-56N 56 foot DMX medium duty tower. Packaged complete with CBS-08 concrete base stubs, top plate, rotor plate, (2) model 244A cast aluminum mast clamps and all necessary hardware. Mast not included.

FEATURES:

• Attractive tapered design.
• “X” brace with beaded channel leg
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure
• High strength galvanized steel construction
• Eight foot sections
• Sections 5 to 8 are 12 gauge, 2 to 4 are 16 gauge galvanized steel
• Compact shipping package
• Free standing installation
• Ideal for amateur radio and industrial/commercial communications applications
• Climb shields recommended

• Tower Height: 56'
• Wind Load: 6 sq.ft.

Skidded Dimensions: 101" L x 35" W x 29" H / Cubic Feet: 29.6 / Weight: 439 lbs

Unskidded Dimensions: 96" L x 29" W x 29" H / Cubic Feet: 23.7 / Weight: 329 lbs
