DMXMD-48N

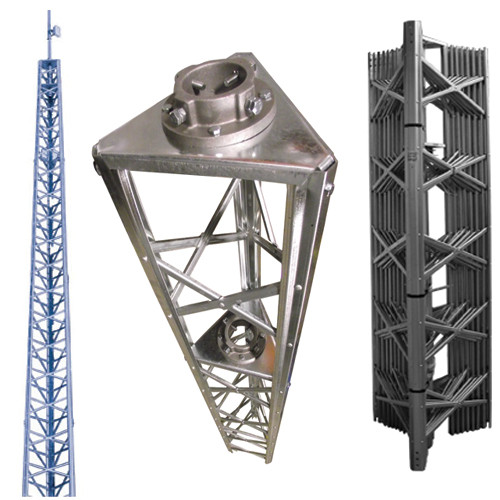

Wade's DMXMD-48N 48' DMX Medium Duty tower is packaged complete with CBS concrete base stubs, top plate, rotor plate, 2 model 244A cast aluminum mast clamps and all necessary hardware. Mast not included.

Features:

• Attractive tapered design.
• "X" brace with beaded channel leg.
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure.
• High strength galvanized steel construction.
• Eight foot sections.
• Sections 5 to 7 are 12 gauge, 2 to 4 are 16 gauge galvanized steel
• Compact shipping package.
• Free standing installation.
• Ideal for amateur radio and industrial/commercial communications applications.
• Climb shields recommended.

• Tower Height: 48' (14.63m)
• Wind Load: 6 sq.ft. (0.56 m2)

Skidded Dimensions: 101" L x 32" W x 29" H / Cubic Feet: 27.1 / Weight: 331 lbs

Unskidded Dimensions: 96" L x 27" W x 27" H / Cubic Feet: 20.25 / Weight: 271 lbs
