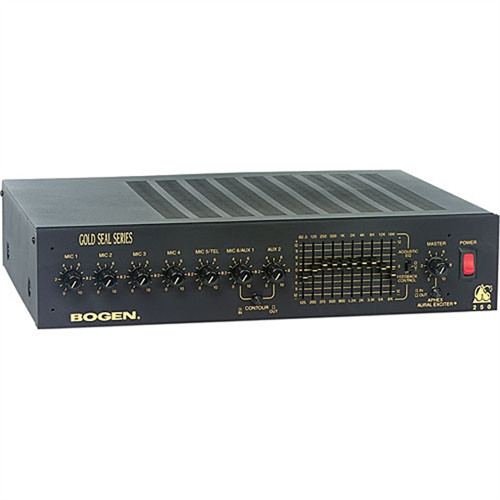

Gold Seal Series (bogen_GS35)

Bogen Communications Inc.

$489.99

Product Description

The Gs35 35W Gold Series Amplifier From Bogen Is Ideal For Public Address Systems. This Reliable, Versatile Amp Features 4 Dedicated Xlr Microphone Inputs Plus One Dedicated Aux Input And Two Switchable Inputs For Either Mic/Aux Or Mic/Telephone. Improved Intelligibility Is Aided By The Integrated Aphex Aural Exciter And The 10-Band Graphic Equalizer Which Regulates Acoustic Eq And Feedback Control. The Telephone Input Has Voice Activated Muting With Gradual Fade Back From The Aux Input After Muting.

Datasheet:

Power Rating (RMS):	GS35: 35 watts; GS60: 60 watts; GS100: 100 watts; GS150: 150 watts
Frequency Response:
Transformer Output Â	65 Hz to 20 kHz, +0/-2 dB @ -2 dB
Direct Output Â	20 Hz to 20 kHz, +0/-1 dB @ rated power
Distortion:
Transformer Output Â	0.5% (max.), 0.3% (typ.), 65 Hz to 20 kHz @ -2 dB
Direct Output Â	0.5% (max.), 0.3% (typ.), 20 Hz to 20 kHz
Signal-to-Noise Ratio:	Fundamental: -94 dB or better; AUX 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms
MIC 1 through MIC 6:	-60 dB or better @ 200 ohms
Inputs/Outputs: MIC:	6 Lo-Z balanced via 4 XLR connectors and 2 screw terminals;
Sensitivity:	0.35 mV (200 ohms)
AUX:	2 Hi-Z RCA?jacks; Sensitivity: 0.085V (10k ohms)
Telephone:	Screw terminals; Sensitivity: 0.07V (600 ohms)
Output to Power Amp:	5V @ Rated Output via RCA jack
Power In/Pre Out:	In 1V/Out 1V via RCA?jacks
WMT1A Output:	25V @ Rated Output via RCA jack
Tape Output:	687 mV @ Rated Output via RCA jack
Output Impedance:	All models: balanced or unbalanced 8-ohms, 25V, 25VCT, 70V, 4-ohm direct
Output Regulation:	Better than 2 dB from no load to full load
AC Input Voltage:	120V AC
AC Current:	GS35: 0.9A; GS60: 1.3A; GS100: 2.2A; GS150: 3.0A
Thermal Emissions (Full Power):	GS35: 122.9 BTU/hr.; GS60: 283.5 BTU/hr.; GS100: 365.4 BTU/hr.; GS150: 642.1 BTU/hr.
Variable Mute Range:	0 dB to -30 dB (AUX 1 & 2)
ALC:	Distortion: less than 0.5%; Compression: 25 dB
VOX?Threshold:	Input 20 mV (VOX?control max. CW position)
MIC Precedence:	Via terminal strip. -60 dB:?MIC 1, 2, 3, 5/TEL, 6/AUX, AUX 2
Power In/Pre Out:	In 1V/Out 1V via RCA jacks
Loudness Contour:	+8 dB @ 100 Hz, +4 dB @ 10 kHz (AUX 1 & 2 control at 1/4 CW?position)
Overload Protection:	Electronic with automatic reset
Thermal Protection:	Thermistor attached to heat sink
Line Fusing:	Resettable circuit breaker
Dimensions:	16-1/2" W x 3-1/2" H x 12" D All Models
Product Weight:	GS35: 17 lb.; GS60: 20 lb.; GS100: 23 lb.; GS150: 29 lb.
