DMX-68N Standard Duty

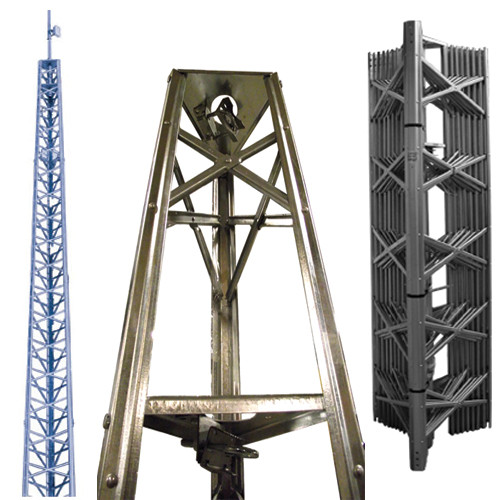

Model DMX-68N 68 foot DMX standard duty tower. Packaged complete with CBS-08 concrete base stubs, DM mast, top plate, rotor plate, TMCA clamp assembly and all necessary hardware. Height includes mast.

FEATURES:

• Attractive tapered design.
• “X” brace with beaded channel leg
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure
• High strength galvanized steel construction
• Eight foot sections
• Sections 5 to 8 are 12 gauge, 1 to 4 are 16 gauge galvanized steel
• Compact shipping package
• Free standing installation
• Ideal for amateur radio and industrial/commercial communications applications
• Climb shields recommended

Tower Height: 68' (20.7m)

Wind Load: 3 sq.ft.

Skidded Dimensions: 101" L x 35" W x 29" H / Cubic Feet: 29.6 / Weight: 460 lbs

Unskidded Dimensions: 96" L x 29" W x 29" H / Cubic Feet: 23.7 / Weight: 400 lbs
