DMX-44N Standard Duty

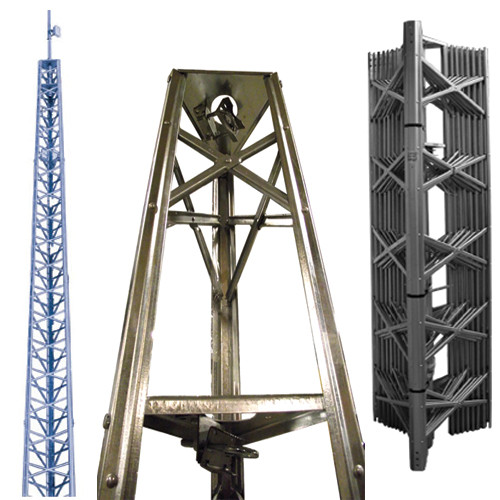

Model DMX-44N 44 foot DMX standard duty tower. Packaged complete with CBS-05 concrete base stubs, DM mast, top plate, rotor plate, TMCA clamp assembly and all necessary hardware. Height includes mast.

FEATURES:

• Attractive tapered design.
• “X” brace with beaded channel leg
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure
• High strength galvanized steel construction
• Eight foot sections
• Section 5 is 12 gauge, 1 to 4 are 16 gauge galvanized steel
• Compact shipping package
• Free standing installation
• Ideal for amateur radio and industrial/commercial communications applications
• Climb shields recommended

• Tower Height: 44' (13.4m)
• Wind Load: 3 sq.ft.

Skidded Dimensions: 101" L x 26" W x 23" H / Cubic Feet: 17.47 / Weight: 255 lbs

Unskidded Dimensions: 96" L x 21" W x 21" H / Cubic Feet: 12.25 / Weight: 195 lbs
