DMX-28N Standard Duty

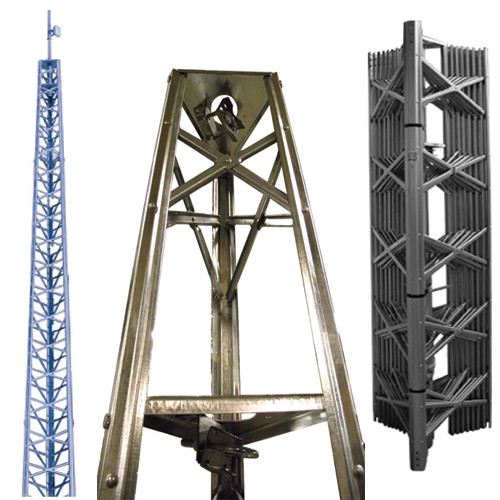

Wade's DMX-28N 28' DMX Standard Duty tower is packaged complete with CBS-03 concrete base stubs, DM mast, top plate, rotor plate, TMCA clamp assembly and all necessary hardware. Height includes mast.

Features:

• Attractive tapered design.
• "X" brace with beaded channel leg.
• Enhancements made to both leg profile and taper allow for easier installation and improved tower structure.
• High strength galvanized steel construction.
• Eight foot sections.
• Sections 1 to 3 are 16 gauge galvanized steel
• Compact shipping package.
• Free standing installation.
• Ideal for amateur radio and industrial/commercial communications applications.
• Climb shields recommended.

• Tower Height: 28' (8.53m)
• Wind Load: 3 sq.ft. (0.28 m2)

Skidded Dimensions: 101" L x 21" W x 23" H / Cubic Feet: 14.1 / Weight: 138 lbs

Unskidded Dimensions: 96" L x 16" W x 16" H / Cubic Feet: 7.1 / Weight: 88 lbs
