- Zone Paging Controller (bogen_PCMTIM)
, $210.99 (https://shop.lafayetteelectronicsupply.com/zone-paging-controller-bogen_pcmtim/))
Product Description

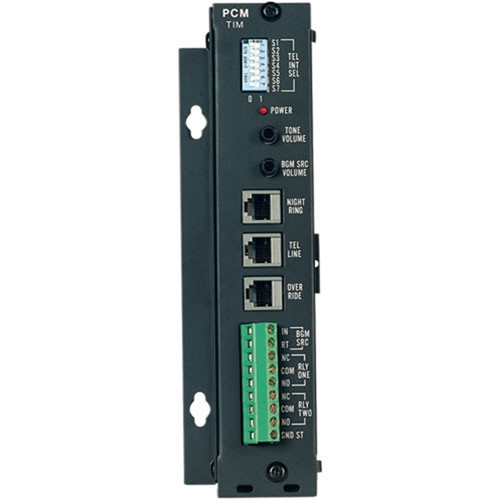

The Bogen Communications Pcmtim Telephone Interface Is One Of The Modules That Make Up The Entire Pcm2000 Paging System. The Module Features Provisions For A Telephone Input, Night Ring Control, Background Music Support And Override Control. Tone And Ring Volume Adjust Dials Are Located On The Rear. The Interface Mounts Into A Standard 19-Inch Rack.
Datasheet:
Datasheet:
| Registered under Part 68 of FCC Rules | |
|---|---|
| Ringer Equivalence: | 1.0B |
| Operating Voltage: | 12V DC |
| Operating Current (max.): | 1.5A (9-zone system) |
| Audio Power Capability: | 250W |
| Operating Temperature: | 25 to 100°F |
| Operating Humidity: | 0 to 90% non-condensing |
| Dimensions (single module): | 1-1/2" W x 7-1/2" H x 4-1/4" D |
| Shipping Weight (each module): | Approximately 1-2 lb. |
