Classic Series (bogen_C60)

Bogen Communications Inc.

$526.99

Product Description

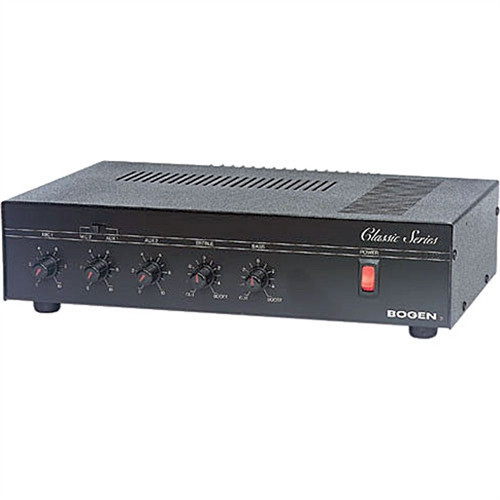

The C60 Classic Series Public Address Amplifier 60W From Bogen Is A Reliable Mixer/Amplifier. This Amp Uses Discreet Complementary Transistor Circuitry For Reliable Power At Each Output Stage. The Rear Panel Has Variable Output Taps At 4/8/16 Ohms And 25/70V. This Amp Has 4 Inputs With Independent Volume Controls Plus Treble And Bass Controls. Output Jacks Are Provided For Recording Or Secondary Amplifiers.

Datasheet:

Power Output (RMS):	C35 C60 C100
Rated	35W 60W 100W
Frequency Response& Distortion:
TransformerÂ	70 Hz-16 kHz (Â± 2 dB) @ 1% max.
4-Ohm Direct Output	20 Hz-20 kHz (Â± 1 dB) @ 0.5% max.
Hum and Noise:
MIC	55 dB below rated output
AUX	70 dB below rated output
TEL	70 dB below rated output
Input Sensitivity:
MIC	Lo-Z Balanced 600?V
AUX	85mV
TEL	75mV
Outputs:	8 ohms (C35 & C60 models only),16 ohms, 25V, 70V transformerisolatedbalanced or unbalanced;4 ohms direct unbalanced
Output Connections:	Screw terminal strip, TAPE/BOOSTERjack; WMT1A jack (requires accessorytransformer)
Input Connections:	Screw terminals for MIC and TEL, twoAUX Hi-Z jacks
Controls:	MIC1, MIC2/AUX (switch selected),AUX 2, BASS, TREBLE, TEL, VOX
Thermal Emissions:	C35: 119.5 BTU/hr.; C60: 228.8 BTU/hr.;C100: 399.6 BTU/hr.
Tone Control:	Treble, Â±11 dB @ 10 kHz;Bass Â±11 dB @ 100 Hz
Power Requirements:	120V?AC, 60 HzC35: 85W; C60: 148W;C100: 220W
Dimensions:	14-1/2" W x 3-3/4" H x 11" D
Product Weight:	C35: 15 lb; C60: 17 lb; C100: 19 lb.
