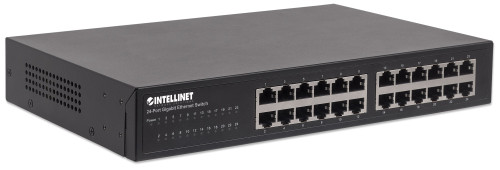

24-Port Gigabit Ethernet Switch

24 x 10/100/1000 Mbps RJ45 Ports, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount

• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Auto-MDIX (auto uplink) support for all RJ45 ports
• For use on desktop or mounted in standard 19" rack

SKU: 561273 [ IES-24G]

Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)
General
• Media support:
- 10Base-T Cat3, 4, 5 UTP/STP RJ45 - 100Base-TX Cat5 UTP/STP RJ45 - 1000Base-T Cat5e UTP/STP RJ45
• Packet filter/forwarding rate:
- 1,488,000 pps (1000 Mbps) - 148,800 pps (100 Mbps) - 14,880 pps (10 Mbps)
• MAC address table: 16384 entries
• Backplane speed / switch fabric: 48 Gbps
• Jumbo frames up to 9 kB
• Switch architecture: store and forward
• 24 RJ45 Gigabit Ethernet ports
• Certifications: FCC Class A, CE
LEDs
• Power
• Link/Activity per port
Power
• Internal power supply: 100 – 240 VAC, 50/60 Hz
• Power consumption: 16 watts (maximum)
Physical
• Metal housing
• Dimensions: 180 (L) x 280 (W) x 44 (H) [mm] / 7.09 (L) x 11.02 (W) x 1.73 (H) [in]
• Weight: 2.6 kg (5.7 lbs.)
Environment
• Operating temperature: 0 – 40°C (32 – 104°F)
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20 – 70°C (-4 – 158°F)
Package Contents
• 24-Port Gigabit Ethernet Switch
• 19" rackmount brackets
• Power cable
• Instructions
