19" Black Horizontal Rack Mount Surge Strip, 10 Outlets, 120V/15A, 1U

Quest Manufacturing Company

$110.00

Product Description

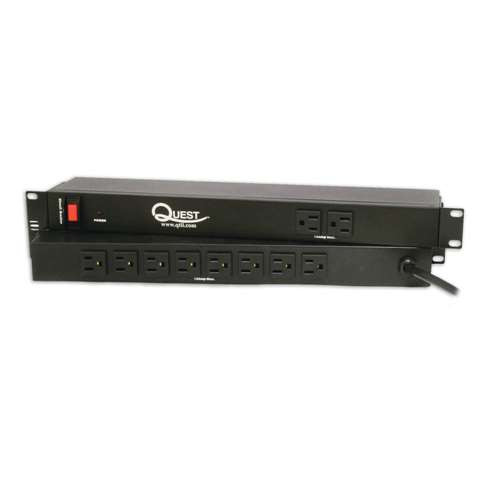

This 10-Outlet Horizontal Power Distribution Units (PDU) is a UL listed surge protected power strip with EMI/RFI protection built-in. It has (2) 120VAC/15A outlets on the front and (8) in the rear, and is constructed with a 6ft. power cord with a standard 3-prong plug, and a safety switch guard to protect inadvertent tripping of the on-off switch. It is ideal for use in both floor enclosures and open frame racks, comes standard with removable vertical mounting brackets and has a black microfinish to match rack and enclosure color.

Datasheet:

Power Cablez Type 6ft.14/3C SJT6ft. 12/3C SJT
	HPS-E10A (15A)	HPS-E14(20A)
Mounting	Style Horizontal/Vertical Horizontal
Height (Rack Units)	1.75"	(1U) 1.75" (1U)
AC Rating	120VAC	120VAC
AC Wattage Rating	1440W	1920W
AC Frequency Rating	60Hz	60Hz
Built-In Amp Meter	No	No
15A Switch w/Circuit Breaker	15A	20A
Max Output per Outlet	12A	16A
Surge Protection (EMI/RFI)	H-N, H-G, N-G	H-N, H-G, N-G
Surge Joule Rating	1050 joules	1050 joules
Power Indicator/Surge Indicator	Red/Green	LED Red/Green LED
Plug Type	NEMA5-15P	NEMA 5-20P
Receptacle Type	NEMA 5-15R	NEMA 5-20R
AC Plug Location	2 Front / 8 Rear	6 Front / 8 Rear
Safety Switch Guard	Yes	Yes
Housing	Metal, Black	Metal, Black
RoHS Certified	Yes	Yes
UL Rating Certified	Yes (60950-1)	Yes (60950-1)
