Horn Speakers (bogen_SPT15A)

$88.99
SKU:
SPT15A
Quantity:

Product Description

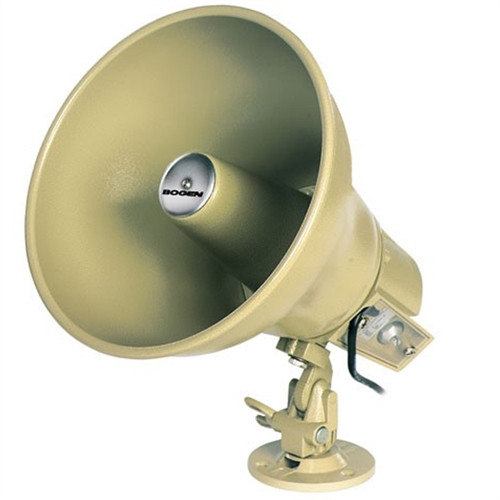

The Spt15A From Bogen Is A 15W 25/70V Reentrant Horn Loudspeaker Ideal For One-Way And Talk-Back Applications In Industrial Plants, Warehouses, Schools, Construction Sites, Transportation Terminals, And Recreational Areas. This Sturdy, Weatherproof Speaker Has An All-Metal Construction And Uses Screw Terminals For A Simple Installation. The Spt15A Is Easy To Install And Easy To Maintain As Well, With Its Self-Aligning, Field Replaceable Diaphragm.

Datasheet: Data Sheet

Power Rating (RMS):15 watts continuous, 20 watts equalized
Frequency Response:275 Hz to 14 kHz
Impedance:SPT15A — 25/70 voltsSP158A — 8 ohms
Sound Pressure Level:121 dB @ four feet on axis with 15 watt input@ 1000 Hz
Dispersion:110º
Sensitivity as Microphone:-22 dBm [Ref: 10 dynes/cm2]
Dimensions:9" Diameter x 9-1/4" D
Product Weight:SPT15A — 4 lb.SP158A — 3 lb.
Finish:Textured mocha enamel
Impedance Selector Switch Settings (SPT15A only):25V @ 15, 7.5, 1.8, 0.94, 0.46 watts70V @ 15, 7.5, 3.8, 1.8, 0.9 watts
