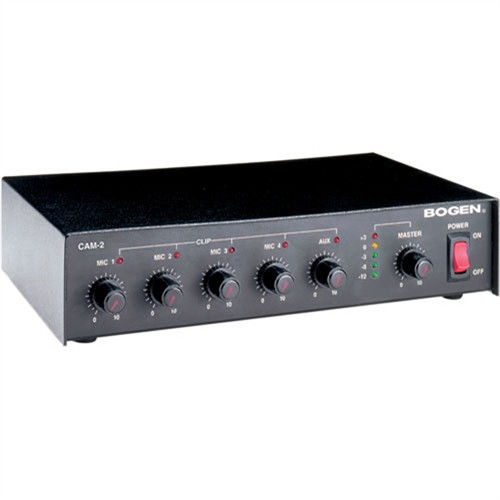

CAM2 MIC/Line Mixer (bogen_CAM2)

$399.99
SKU:
CAM2
Quantity:

Product Description

The Bogen Cam2 Mixer And Preamplifier Is A Handy Compact Mixer That Features Four Xlr Microphone Inputs And A Single Line Input On Rca Phono Connections. The Cam2 Also Features A Mono Balanced Output On A Single Xlr Connector And An Rca Phono Output Is Featured As Well. +48V Phantom Power Is Assignable To All Microphone Inputs. This Enables A Combination Of Dynamic And Condenser Microphones To Be Used. Additional Features Include Switchable +4 / -50Dbu Output Level And Peak Led Meters. The Cam2 Is An Ideal Mixer To Compliment Bogen Or Third Party Public Address Systems.

Datasheet: Data Sheet

Rated Output Levels:
Bal Out:+4 dBu or -50 dBu (switch selected)
Line Out:0 dBu
Frequency Response:+/- 1dB, 20 Hz to 20 kHz
Distortion at Rated Output:Less than .5%
Headroom:10 dB
MIC Input Equivalent Input Noise:-123 dBV (150 ohms source, 20 Hz - 20 kHz)
MIC Input Sensitivity:300uV for rated output
MIC Input Impedance:600 ohms
AUX Input Signal-to-Noise:75 dB (Ref to rated output level, 20 Hz - 20 kHz)
AUX Input Sensitivity:70mV for rated output
AUX Input Impedance:10k ohms
Bal/Out Output Impedance:140 ohms (+4dBu position)
Bal/Out Nominal Load Impedance:600 ohms
Line Out Output Impedance:50 ohms
Line Out Nominal Load Impedance:600 ohms
Crosstalk (adjacent channels):Better than -90 dB
Phantom Power:+12V DC
Output Level Meter (Bar Graph):+3, 0, -3, -8, -12 dB
MIC Input Clipping LED:-29 dBV (35mV)
Controls:4 MIC controls1 AUX control1 MASTER control1 POWER switch4 Phantom Power switchesBAL/OUT Output Level switch
Temperature Range:14 to 120oF; -10 to +48oC
Power Consumption:120V AC, 60 Hz, .03A
Dimensions:11-3/8" W x 2-7/8" H x 7-3/4" D
Shipping Weight:4 lb.
